Palm Oil Mill Plant & Machinery – High-Quality Processing Solutions
Oil palm trees are the world’s most productive oilseed crop and are widely cultivated in tropical regions such as Southeast Asia, Africa and Latin America. To maximize oil extraction efficiency, well-designed palm oil mills with advanced palm oil milling equipment are essential.
As a specialized palm oil machinery manufacturer, KMEC oil machinery provides turnkey palm oil processing solutions, including plant design, equipment manufacture, installation and commissioning. With over 25 years of industry expertise, we can supply palm oil mill equipment ranging from 3TPH to 120TPH, ensuring optimum performance for small, medium and large organizations.

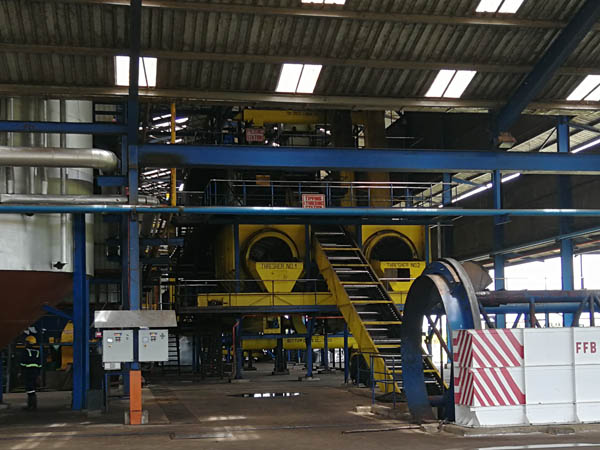

How Modern Palm Oil Mills Work
Fully automated palm oil mills process fresh fruit bunches (FFB) through several key stages to extract the crude palm oil (CPO). Below is a detailed breakdown of the palm oil production process:

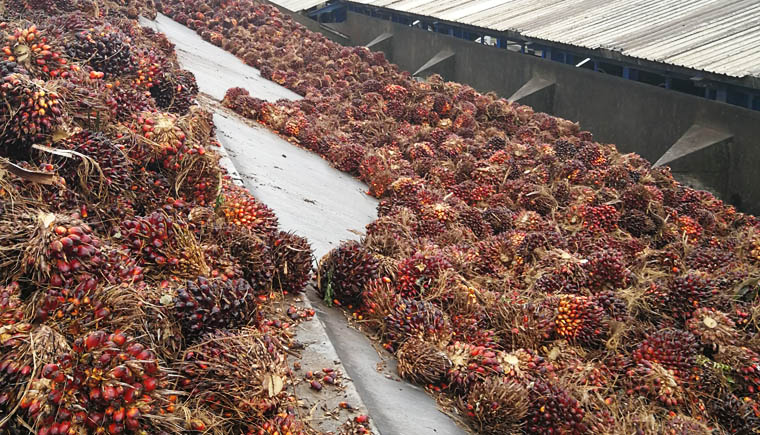

1. Raw Material Reception & Sterilization
Fresh palm fruit bunches are unloaded to the receiving station where they are cleaned and sterilized. High-pressure steam treatment inactivates enzymes, prevents degradation of oils and softens the fruits for easier threshing.

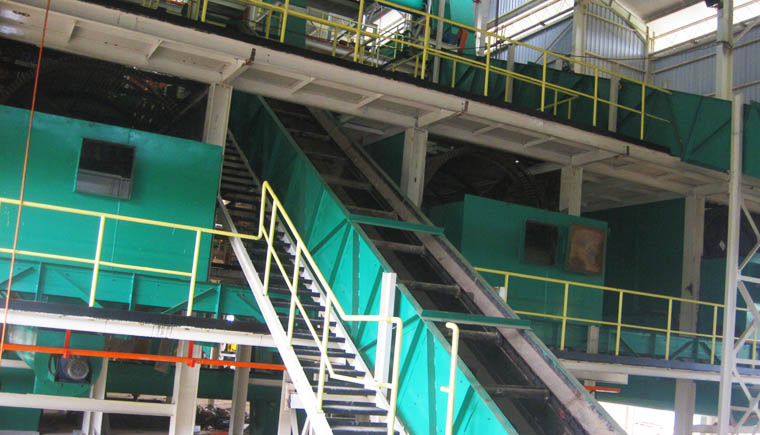

2. Threshing & Fruit Separation
The sterilized bunches are fed into a threshing machine where strong vibrations separate the palm fruits from the empty bunches. Then, the loose fruits are conveyed to the digestion stage.
3. Digestion & Mechanical Pressing
The palm fruits are heated and mechanically agitated in a digester to break down the oil-containing cells. The mashed pulp is then fed into a double-screw palm oil press to extract the gross palm oil under high pressure.
4. Oil Clarification & Purification
The pressed gross oil contains impurities and water. The clarification system utilizes hot water washing, vibrating screens and settling tanks to remove solids and water to produce clean crude palm oil (CPO).
5. Palm Kernel Recovery
After pressing, the remaining fiber and nut mixture is separated and cracked to extract palm kernels. These palm kernels can be further processed into palm kernel oil (PKO).
Palm Oil Refinery Plant – From Crude Oil to Edible Oil
For higher-grade oil production, crude palm oil must undergo refining. KMEC provides three types of palm oil refinery plants:
- Batch Refining (1-20TPD) – ideal for small scale producers
- Semi-Continuous Refining (20-50TPD) – balancing efficiency and cost
- Full Continuous Refining (50-600TPD) – optimal for large scale industrial production
The refining process removes impurities, free fatty acids (FFA) and off-flavors to produce refined, bleached and deodorized (RBD) palm oil for cooking, cosmetics and biofuels.
Why Choose KMEC as Your Palm Oil Machinery Manufacturer?
As a trusted palm oil milling equipment supplier, KMEC offers the following services
✅ Customized Plant Design – Tailor-made solutions for small (1-10TPD), medium (10-500TPD) and large (500TPD+) mills
✅ Advanced Processing Technology – Highly efficient sanitization, pressing and clarification systems
✅ By-product Utilization – Maximize profitability of palm kernel oil, fibre and husk processing
✅ Global Installation Support – On-site commissioning, training and maintenance services
Complete Palm Oil Mill Equipment List
KMEC supplies a complete range of palm oil processing machinery including palm fruit sterilizers, threshing machines, digesters & screw presses, oil clarification systems, palm kernel recovery units, fractionation & refining plants.
Whether you need a small palm oil press or a fully automatic industrial palm oil mill, we have a cost-effective solution for you.
Get a palm oil mill quote today!
KMEC is a leading palm oil machinery manufacturer with a proven track record of providing efficient palm oil pressing equipment. Contact us now:
- Free plant layout design
- Equipment specification and price
- Technical support and aftersales service
Request a quote now and start your palm oil production journey with a reliable partner!
