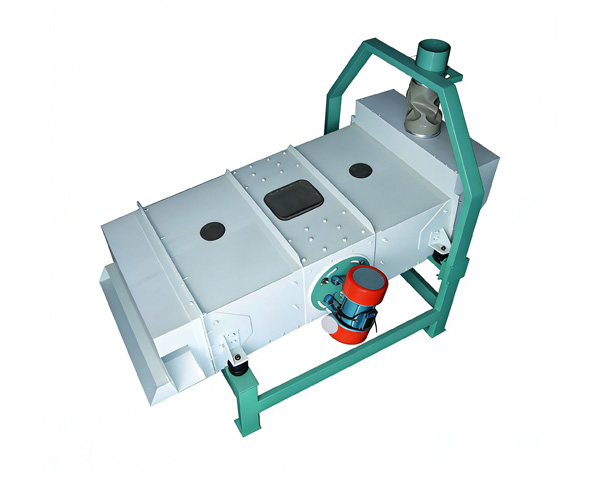

KMEC Vibrating screen Separator is a high-efficiency, stable, and multi-purpose screening and grading equipment widely used in oil extraction, feed, grain processing, food, chemical, sugar, mining, papermakingand other industries. The equipment is suitable for screening, grading and cleaning operations of oilseeds, meals, soybean skins, pelleted feed, powdered materials and other raw materials and finished products. It is an indispensable key screening equipment in modern industrial production.
In oilseed plants, KMEC Vibrating screen Separator can be used for preliminary cleaning of oilseeds, meal screening, separation of soybean skins and kernels, significantly reducing residual oil in soybean skins and improving oil extraction efficiency. In feed mills, it is suitable for grading pelleted feed and fine screening of intermediate products after secondary grinding, ensuring uniform feed particle size and improving product quality.
The equipment adopts a low speed, large amplitude swing operation mode, running smoothly with minimal impact, making it suitable for processing various materials. The screen box structure has been optimized for smooth material flow, reducing the residence time of undersize materials on the screen, effectively reducing screen load and extending equipment service life. Meanwhile, the equipment features high screening efficiency, low failure rate, simple maintenance, and is suitable for long-term continuous operation.
KMEC Vibrating screen Separator can be equipped with various specifications of screen meshes according to different material characteristics and process requirements, flexibly adapting to different particle size grading needs. An optional vertical suction channel is available to further improve material cleanliness, meeting high-standard production requirements.
Whether used as raw material cleaning equipment or finished product grading equipment, KMEC Vibrating screen Separator helps enterprises improve production efficiency and product quality with its high efficiency, precision, and stable performance.
Features of the Vibrating screen Separator
- Low speed, large amplitude swing design: Stable operation, high output, suitable for screening various materials, reducing material damage
- Optimized screen box structure: Smooth material flow, short residence time of undersize materials, reduced screen load
- High screening efficiency: Suitable for fine grading of different materials such as oilseeds, meals, and soybean skins
- Low failure rate: Reliable structure, easy maintenance, long service life
- Flexible adaptability: Screen meshes can be replaced according to process requirements, adapting to different particle size requirements
- Optional suction channel: Supports vertical suction system to improve material cleanliness
Application of KMEC Vibrating screen Separator
- Oil extraction industry: Oilseed cleaning, meal screening, soybean skin and kernel separation, reducing residual oil in soybean skins
- Feed industry: Pelleted feed grading, powdered material screening, intermediate product grading after secondary grinding
- Grain processing: Raw material cleaning, finished product grading
- Food, chemical, sugar, mining, papermaking and other industries: Screening and grading operations for raw materials and finished products
Working Principle
Material is evenly distributed on the screen surface through the feeding device, and is classified and filtered through multiple layers of screen meshes. Impurities larger than the screen openings are discharged from the upper outlet, while material smaller than the screen openings enters the lower screen mesh for further screening. The final finished product is discharged from the corresponding outlet. An optional vertical suction channel can be added to further remove light impurities and enhance material cleanliness.
| Type | TQLE100×100 | TQLE100×150 | TQLE150×150 | TQLE150×200 |
| Sieve Size W×L(cm) | 100×100 | 100×150 | 150×150 | 150×200 |
| Vibration Amplitude(mm) | 5～5.5 | 5～5.5 | 5～5.5 | 5～5.5 |
| Matched Power (kw) | 2×0.25 | 2×0.37 | 2×0.7 | 2×0.7 |
| Motor Rotation (r/min) | 920 | 920 | 920 | 920 |
| Weight (kg) | 420 | 520 | 630 | 650 |
| Matched Aspiration Pressure(mmH2O) | 50 | 50 | 50 | 50 |
| Matched air Volume(m3/min) | 52 | 80 | 110 | 135 |
| Overall Dimensions L×W×H (mm) | 1640×1610×1455 | 2140×1610×1455 | 2140×2160×1455 | 2640×2160×1455 |
Why Choose KMEC Vibrating screen Separator?
– Years of industry experience: Equipment continuously optimized, stable and reliable performance
– Customization services: Screen meshes and structure can be customized according to material characteristics and process requirements
– omprehensive service system: providing a full range of services including technical support, parts supply, and after-sales maintenance.
– High cost-performance ratio: Provides efficient screening solutions at reasonable prices
