Oil Extraction Plant

Turn-key Project, Expert Design.

As a leading Chinese manufacturer of oil extraction equipment, KMEC provides complete solvent extraction plants and auxiliary machinery. Our offerings cover the full spectrum, from small-scale oil mill machinery to large-capacity industrial oil extraction systems, including detailed process design and engineering support.

Introduction to Solvent Extraction

Solvent extraction is a process to extract the oil from oil bearing materials by means of a solvent. A typical solvent used is hexane. The solvent extraction plant is designed to extract oil directly from oil seeds containing less than 20% oil, like soybeans, after flaking. Or it extracts oils from pre-pressed or fully pressed cake of seeds containing more than 20% oil like sunflowers, peanuts, cotton seed, palm kernels, canola, copra, castor and a variety of other materials. The purpose of solvent plant extraction is to remove most of the oil contained in the seed. Extraction is conducted on prepared seeds or, as generally occurs in the case of high oil content seeds, the cake obtained from pre-pressing. Solvent extraction consists of a sequence of five operations:

  1. Preparation of seeds for extraction which includes pre-pressing for high oil content seeds.
  2. Extraction of oil from the prepared material with the aid of a food-grade solvent.

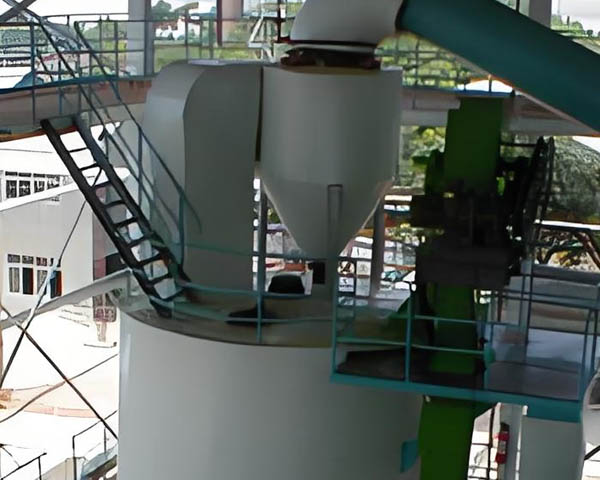

  3. Desolventising-toasting of the de-oiled seed/meal, often combined with drying and cooling of the said meal.
  4. Distillation, to remove the solvent from the extracted oil.
  5. Recovery of solvent, which is reused again and again at the extractor level.

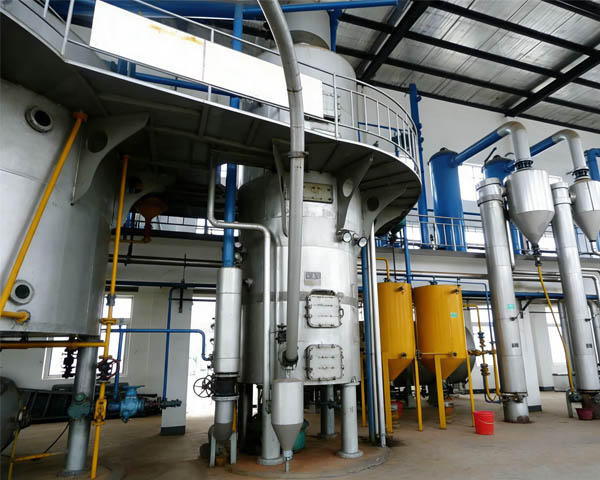

Solvent Extraction Plant Workshop

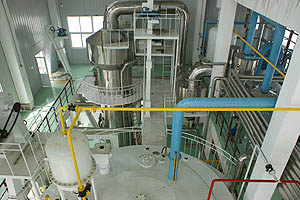

Workshop of Solvent Extraction Plant

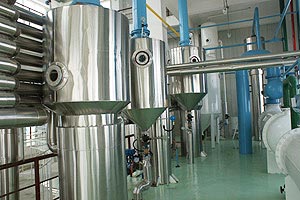

Workshop of Solvent Extraction Plant

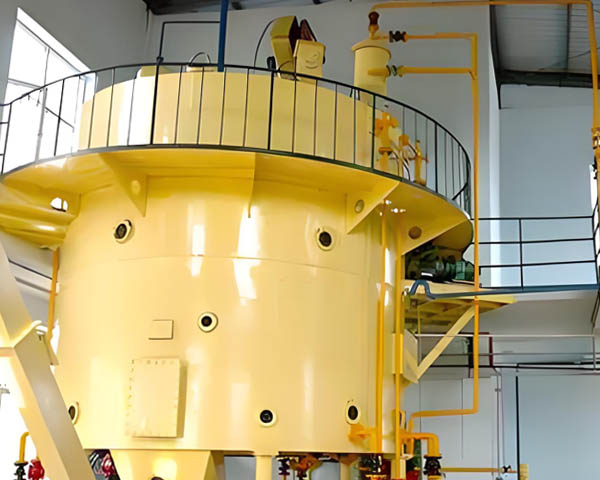

Solvent Extraction Technology

  • Simple in structure with stable performance.
  • Additional horizontal grid plate prevents the miscella from flowing back into the material cell to ensure the best extraction effect.
  • The wet meal is discharged by the material discharger which continuously discharges the wet meal onto the wet meal conveyor. This avoids meal bridging, un-uniform wet meal discharging and extends the serviceable life of the wet meal conveyor.
  • Composed of pre-extraction, extraction and draining sections. There is material turnover in the process of extraction to make the extraction uniform and thorough. Special self-cell solvent spraying ensures the best effect during extraction.

Features of the Solvent Extraction Process

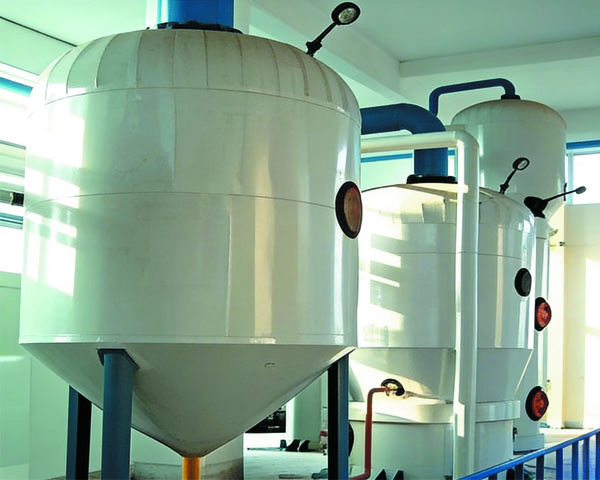

  • Evaporation takes place in a vacuum for the best oil quality.
  • Extraction system can process different raw materials.
  • Developed by BMC, solvent recovery system from vent gas is particularly absorbent.
  • With full energy conservation and repeat utilization, steam consumption is markedly reduced.

KMEC – Your Expert in Oil Extraction Machinery

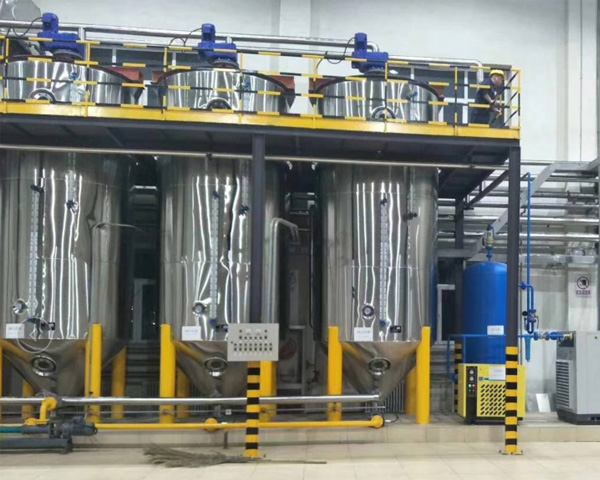

At KMEC, we engineer and supply complete vegetable oil extraction systems tailored to diverse production scales, with daily capacities ranging from 500 kg to 1000 tons, integrating both pre-press extraction and direct extraction methodologies. From a single oil extraction machine to a complete oil refining plant, we provide comprehensive industrial oil extraction solutions.
