1-5 TPD Mini Peanut Oil Production Line
For entrepreneurs and small-scale processors looking to enter the edible oil industry, a compact peanut oil processing plant represents an excellent investment. Our 1–5 TPD mini edible oil production line is engineered for efficiency, economy, and versatility. It processes a wide range of oil-rich seeds, including peanuts (groundnuts), sesame, soybeans, almonds, palm kernels, corn germ, and sunflower seeds.
This small automatic oil pressing line features mechanical drive systems with seamless interconnectivity between units, enabling semi-continuous operation. This configuration not only boosts oil yield but also enhances workflow stability, making it an ideal choice for launching a profitable groundnut oil business.
Key Features of the Peanut Oil Production Line
- Easy Operation & Installation: Simplified design ensures quick setup and minimal training requirements.
- Low Investment & Space-Saving: Requires limited floor space and capital, while offering full production capabilities.
- Reduced Labor Costs: Only 2–3 operators are needed to manage the entire line, thanks to semi-automated processing.
- Consistent Output & Safety: Automated feeding reduces manual intervention, ensuring steady material flow and enhancing operator safety.
- Energy-Efficient Design: Optimized to lower power consumption while maintaining high oil extraction rates.

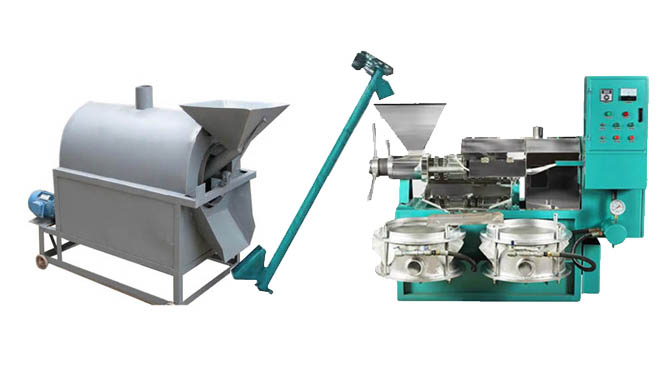

Main Equipment in the Mini Peanut Oil Extraction Plant

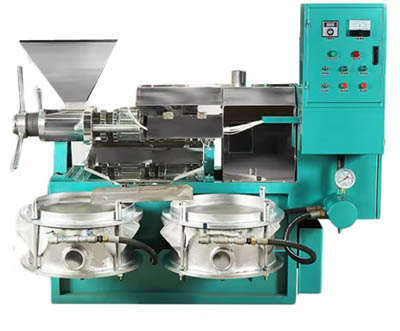

1. Integrated Oil Extraction Machine
The heart of the line, this integrated groundnut oil extraction machine, combines pressing, heating, and filtration in one robust unit. As an advanced screw oil press model, it includes a vacuum oil filter to remove impurities, producing clear, pure oil suitable for edible use or biodiesel. Its high oil yield efficiency makes it a core component of any small-scale oil mill.
| MODEL | CAPACITY(KG/H) | POWER(KW) | NET WEIGHT(KG) | PACKING(MM) |
| YZS-80A | 80-125 | 5.5 | 450 | 1860*670*1680 1060*590*600 |
| YZS-100A | 160-200 | 7.5 | 550 | 2270*750*1820 1220*590*600 |
| YZS-120A | 250 | 11 | 1000 | 2350*810*1870 1350*700*570 |
| YZS-130A | 330-420 | 15 | 1500 | 2500*800*1850 1500*700*570 |

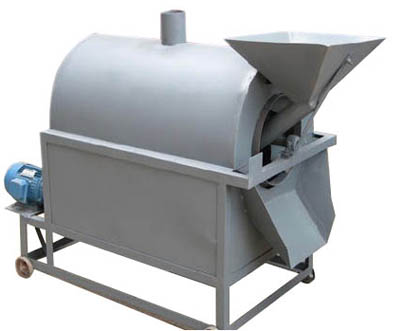

2. Drum Roaster Machine
Roasting is crucial for improving oil flavor and extraction efficiency. Our automatic drum roaster is available in multiple sizes and can handle various seeds like rapeseed, cottonseed, and sunflower seeds. It features flexible fuel options (electric, gas, or biomass) to suit local availability.
| Model | Match Motor (kw) | Size (mm) | Capacity (kg/h) | Weight (kg) |
| 550 | 6-0.76 | 1550*700*1050 | 100 | 100 |
| 650 | 6-0.76 | 1800*850*1200 | 200 | 165 |
| 750 | 6-1.1 | 2050*950*1400 | 300 | 221 |
| 900 | 6-3 | 2400*1100*1700 | 500 | 350 |

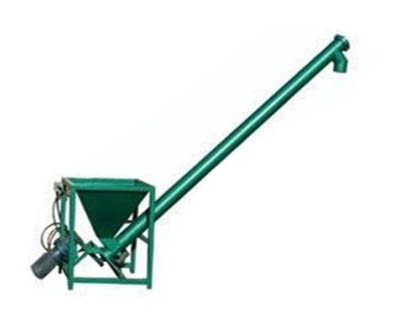

3. Screw Elevator & Conveying System
This component ensures smooth, continuous transport of raw materials between stages, reducing manual handling and boosting productivity in the peanut oil processing line.

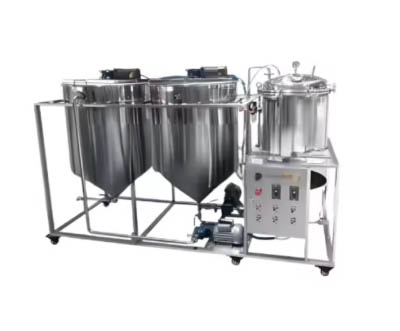

4. Oil Filter Press & Refining Equipment (Optional)
For higher quality edible oil, an optional filtering and refining system can be added to remove gums, odors, and sediments, meeting market standards for purity and shelf life.
Applications & Market Potential
This versatile small automated oil extraction line extends beyond peanut oil production to yield: cold-pressed peanut oil, soybean oil, sunflower seed oil, and other vegetable oils. It serves: small edible oil manufacturers, agricultural cooperatives, startup oil processing enterprises, and farm-based value-added producers.
Why Choose Our Mini Peanut Oil Production Line?
- High Quality & Innovative Design
As a direct manufacturer with over 20 years of expertise in oil mill machinery, we pioneer durable and technologically advanced groundnut oil extraction machines. Each unit is engineered for performance and longevity. - Competitive Factory Pricing
We offer genuine factory-direct prices with no intermediaries, ensuring you get the best value for a complete peanut oil plant. - Professional Technical Support
From layout planning to installation and training, our team provides end-to-end support. We have successfully installed edible oil production lines worldwide for various raw materials. - Customizable Configuration
Depending on your output goals, budget, and space, we can tailor the mini oil processing plant with additional equipment such as crackers, cookers, or oil refining systems.
Contact Us to Launch Your Oil Project
If you’re searching reliable groundnut oil extraction machine, peanut oil production line, or small scale oil processing equipment, our solutions perfectly balance output, quality, and cost-effectiveness. Whether you require a basic peanut oil extraction machine or a fully automated groundnut oil production line, we provide expert guidance and dependable equipment.
Get your customized quote and project consultation today!
