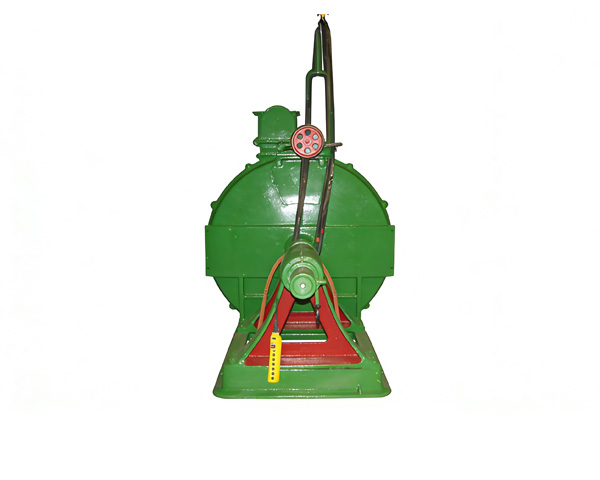

The cottonseed dehuller (also known as disc dehuller) is KMEC’s flagship model specially designed and manufactured for large oil mills. It is the largest and best-selling dehulling equipment in our product series. It adopts a patented structure, innovatively adding a mixing wheel between the traditional fixed disc and moving disc, which significantly expands the working area, thereby greatly enhancing the equipment’s processing efficiency and dehulling capacity.
This equipment is optimized specifically for cottonseed dehulling, while also being widely applicable for shelling other oilseeds such as peanuts, tung nuts, and oil-tea camellia seeds, as well as for crushing operations on soybeans, peanut kernels, and oil cake blocks. Its dehulling rate reaches up to 99% . For the small amount of cottonseed not fully dehulled in the first pass, secondary processing can be easily performed to ensure thorough dehulling.
During the dehulling process, the equipment effectively separates short linters. When combined with a fan and cyclone separator for collection, it makes kernel-hull separation easier while increasing the protein content in the meal. The equipment operates environmentally friendly and hygienically, producing no pollution. It is easy to operate and features a foreign object removal function to protect safe equipment operation.
Despite its powerful performance, the machine’s power consumption is exceptionally well controlled, at only 7.4 kW per ton of material, achieving energy saving and consumption reduction while maintaining high efficiency. Whether for new large-scale oil mill construction or upgrading existing production lines, this cottonseed dehuller will be your ideal choice for increasing production capacity and reducing costs.
Working Principle of Cottonseed Dehuller
The disc dehuller mainly consists of the following parts: Feeder, Fixed grinding disc, Moving grinding disc, Grinding segments, Base, Housing, Adjuster, etc.
Working Process:
1. Cottonseed enters the dehuller uniformly through the feeder
2. The material is subjected to rubbing and shearing action between the fixed and moving grinding discs
3. The patented mixing wheel increases the working area, enhancing the dehulling effect
4. The cottonseed hull is crushed and peeled off, while the inner kernel remains
5. The mixture of kernels and hulls is discharged from the lower outlet
6. Short linters are separated during the dehulling process and can be collected using a fan and cyclone separator
Features and Advantages Cottonseed Dehuller
– Patented Structure, Large Working Area
The mixing wheel added between the fixed and moving discs significantly expands the working area, enhancing processing efficiency.
– Dehulling Rate Up to 99%
Extremely high efficiency in a single pass; a small amount of undehulled seeds can be processed a second time, ensuring thorough dehulling.
– Low Power Consumption, Energy Saving
Power consumption is only 7.4 kW per ton of material, achieving energy savings while operating efficiently.
– Effective Short Linter Separation
Short linters are automatically separated during dehulling and can be collected with a fan and cyclone separator, facilitating subsequent kernel-hull separation.
– Increased Protein Content in Meal
Good kernel-hull separation effectively reduces residual kernels in the hulls, improving the nutritional value of the meal.
– Environmentally Friendly, No Pollution
The equipment operates cleanly and environmentally, producing no dust or waste pollution.
– Easy Operation, Convenient Maintenance
Reasonable structural design; the adjuster allows flexible control of the dehulling degree; daily maintenance is simple.
– Foreign Object Removal Function
Effectively removes foreign objects mixed into the raw material, protecting the equipment for safe operation.
– Multi-Purpose, Wide Applicability
Not only suitable for cottonseed dehulling but also for shelling peanuts, tung nuts, oil-tea camellia seeds, and crushing soybeans, peanut kernels, and oil cake blocks.
– Simple Structure, Durable
Mature disc dehuller design combined with high-quality materials ensures a long equipment service life.
| Model | Capacity (t/d) | Power(kw) | Weight (kg) | Dimensions(mm) |
| GCBK71 | 35 | 18.5 | 1100 | 1820*940*1382 |
| GCBK91 | 50-60 | 30 | 1700 | 2160*1200*1630 |
| GCBK127 | 100-170 | 37-45 | 2600 | 2400*1620*1980 |
Application
– Cottonseed Oil Pretreatment: Dehulling cottonseed facilitates subsequent processes like flaking, cooking, pressing, or extraction.
– Peanut Shelling: Suitable for shelling peanut pods to obtain peanut kernels.
– Tung Nut / Oil-tea Camellia Seed Processing: Shelling treatment for specialty oilseeds.
– Soybean Crushing: Using grid groove segments for crushing soybeans to facilitate subsequent flaking.
– Peanut Kernel Crushing: Crushing peanut kernels to a suitable particle size.
– Oil Cake Crushing: Crushing pressed oil cake blocks to facilitate extraction or grinding.
Customer Cases
> “We are a large-scale cottonseed processing plant handling 500 tons of cottonseed per day. Since using your company’s cottonseed dehuller, the dehulling rate has remained stable at over 99%, the linter separation effect is excellent, and the protein content in the meal has significantly increased. The equipment has been running very stably for over three years.”
> —— Production Manager, an oil processing enterprise in Xinjiang
> “The patented structure of this machine is truly impressive. With the same power, its processing capacity is nearly double that of the old equipment, and the power consumption is lower. We’ve saved a considerable amount on electricity bills over the year.”
> —— Equipment Supervisor, a cottonseed oil mill in Shandong
> “We not only use it for dehulling cottonseed but also switch to the grid groove segments for crushing soybeans. One machine for multiple uses offers excellent cost performance.”
> —— General Manager, a vegetable oil processing company in Jiangsu
