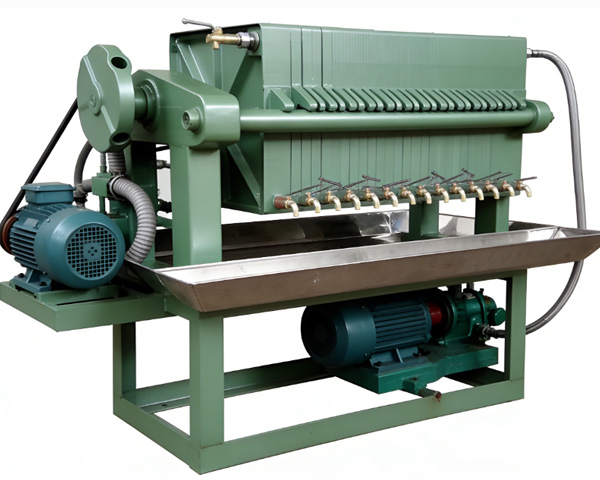

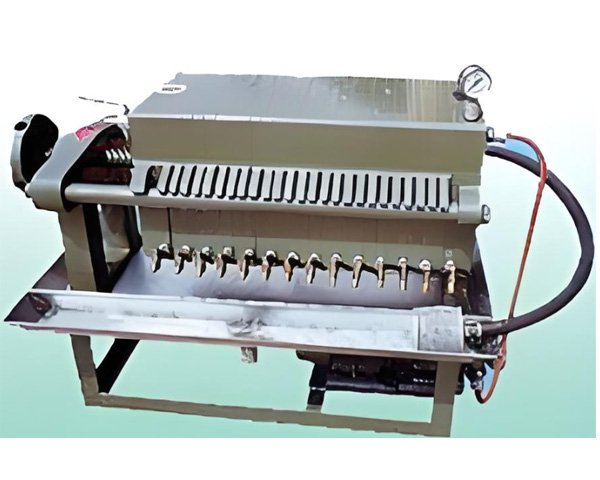

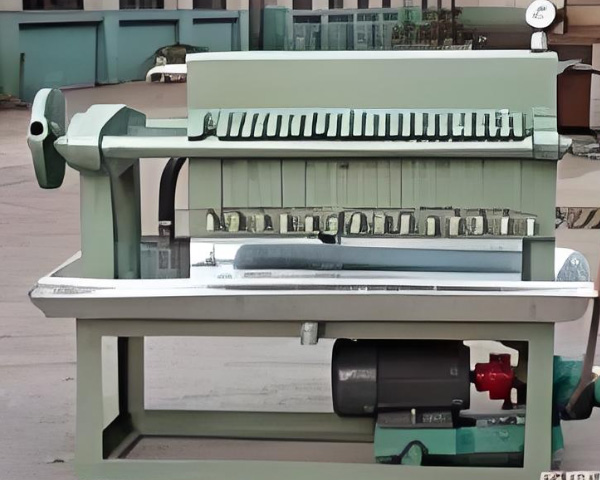

The oil filter press is an indispensable solid-liquid separation equipment in the edible oil processing field, widely used in stages such as crude oil filtration, refined oil filtration, and bleached oil filtration. It effectively removes unwanted particles like impurities, residues, phospholipids, and pigments contained in crude oil, ensuring the purity and quality of the final edible oil.
The plate filter press manufactured by KMEC uses fine-pore filter cloth as the filtration medium. Through pressure difference, liquid edible oil is forced through the filter cloth, while impurities are trapped between the filter plates, achieving efficient separation. This equipment complies with IB/T 4333-1997 industry standards, featuring simple operation, stable filtration effect, large processing capacity, and low impurity residue.
In addition to edible oil processing, the oil filter press can also be used for impurity removal during biodiesel refining, as well as solid-liquid separation scenarios in industries such as wastewater treatment, chemical, and pharmaceutical. We offer various specifications and models, and can customize dimensions and capacity according to customer requirements to meet different production scales.
Working Principle Of Oil Filter Press
The oil filter press utilizes pressure difference to achieve solid-liquid separation:
- Filter cloth is separated by filter plates to form multiple chambers
- Pressurized liquid edible oil passes through the filter cloth under pressure
- Pure oil flows out from the oil outlet below the filter cloth
- Impurities are trapped on the surface of the filter cloth between the plates, forming a filter cake
- After filtration, the equipment can be opened to remove the filter cake
Features Of Oil Filter Press
- High Filtration Efficiency: Effectively removes impurities, residues, phospholipids, pigments, etc.
- Simple Operation: Reasonable structural design, easy to operate and maintain
- Large Processing Capacity: Can meet production needs of different scales
- Low Impurity Residue: Ensures purity of filtered oil
- Wide Applicability: Suitable for edible oil, biodiesel, chemical, pharmaceutical, and other industries
- Customizable Specifications: Dimensions and capacity can be customized according to customer requirements
- Long Service Life: Made of high-quality materials, durable and reliable
- Compliant with Standards: Strictly follows industry technical specifications
Application Scenarios
– Crude Oil Filtration: Removing large particle impurities (dirt, debris, leaves, etc.) from crude oil
– Refined Oil Filtration: Removing finer impurities such as residual soap, phospholipids, pigments, etc.
– Bleached Oil Filtration: Filtration after the decolorization stage in edible oil refining
– Biodiesel Refining: Removing reaction residues and impurities
– Wastewater Treatment: Solid-liquid separation in industrial wastewater
– Chemical/Pharmaceutical: Filtration and separation of various suspensions
Technical Parameters
| Model | No.of filter plates | Dimension of filter plate | Working pressure | Productivity | Power | Dimension | Weight |
| YLY-250 | 13pcs | 250*250mm | 0.3-0.4MPa | 100kg/h | 0.75kw | 780*530*670mm | 155kg |
| YLY-350 | 25pcs | 350*350mm | 0.3-0.4MPa | 200kg/h | 1.1kw | 1300*750*700mm | 470kg |
