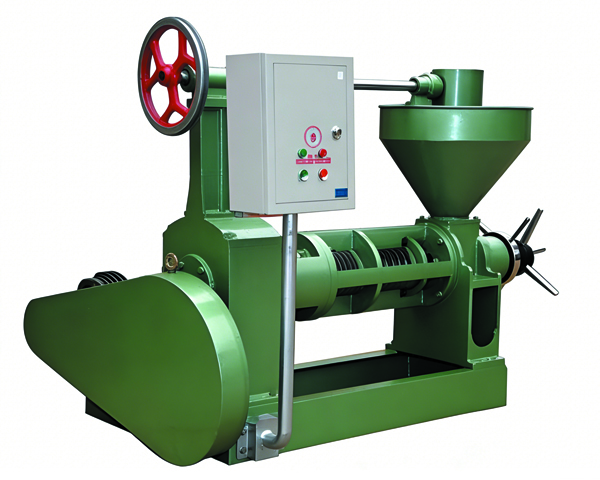

Cotton seed oil is a vegetable oil extracted from the seeds of the cotton plant. This oil contains high concentrations of unsaturated fatty acids and antioxidants such as Vitamin E, which are very beneficial for human health. Our cotton seed oil extraction machine utilizes a physical pressing process. The machine’s power is transmitted to the main shaft via a gearbox. The squeezing spiral mounted on the main shaft rotates, pushing the cotton seed material from the hopper into the pressing chamber. Due to the gradually reduced space within the pressing chamber, high pressure is generated, and friction between the material and parts creates heat. Under the combined action of pressure and heat, the cell structure of the cotton seed is disrupted, and the oil is squeezed out through gaps in the press bars. The remaining cake is discharged from the cake outlet for use in by-product processing.
Advantages & Features of Cotton Seed Oil Extraction Machine
- Enhanced Oil Yield Technology: Features an extended four-stage/five-stage pressing design, increasing pressure within the pressing chamber to ensure complete cotton seed extraction in a single pass. Compared to standard equipment, this can increase the oil yield by 1-3 percentage points.
- Core Component Durability: The squeezing spirals and press bars are made from alloy steel treated with carburizing and quenching processes. This results in high hardness and strong wear resistance, making them suitable for the long-term, continuous processing of hard materials like cotton seeds.
- Intelligent Temperature Control System: Equipped with an infrared heating and automatic temperature control device. It precisely manages the temperature for different processes, whether it is cold-pressing cotton seeds (no heating required) or hot-pressing (heating required), ensuring consistent oil quality.
- Integrated Vacuum Filtration:Features a built-in vacuum oil filter. The crude oil extracted during pressing is directly filtered through negative pressure to remove impurities. This yields clear, edible oil and reduces the need for subsequent refining steps.
Process Flow of Cotton Seed Oil Extraction Machine:
- Cleaning: The cotton seeds undergo cleaning to remove impurities and delinting.
- Dehulling: The cotton seeds are dehulled, and the kernels are separated from the hulls (a critical step for improving oil yield).
- Flaking: The cotton seed kernels are rolled into thin flakes.
- Cooking: Adjusting the temperature and moisture content (essential for the hot-pressing process).
- Pressing: The prepared material enters the cotton seed oil extraction machine to extract the oil.
- Filtration:The crude oil is processed through a vacuum oil filter to obtain the crude oil.
