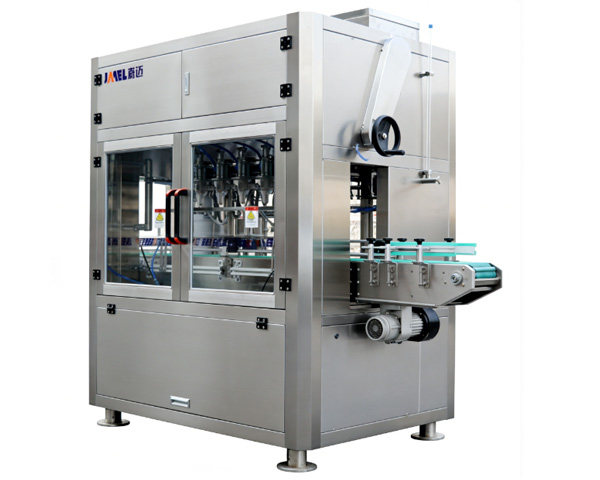

We provide professional filling machine/capping machine design solutions suitable for all types of vegetable oils, including virgin oil and refined oil. Depending on your production layout, we can offer independent filling machines or integrated filling and capping systems. The equipment is manufactured with high-quality 304 stainless steel (optional 316 for contact parts), driven by servo motor metering systems to ensure high-precision filling. It is equipped with drip trays, blow-fill nozzles (suitable for viscous oils), CIP cleaning hoppers, etc., to meet various packaging requirements.
Core Features of KMEC Oil Filling Machine
- Food-Grade Stainless Steel: Body made of 304 stainless steel, contact parts optional 316, durable and compliant with hygiene standards.
- Servo Motor Drive: High-precision metering, low filling error, adaptable to different oil viscosities.
- Drip Tray: Collects dripping liquid to keep the workbench clean.
- Blow-Fill Nozzle: Prevents tailing of viscous oils at the nozzle, ensuring clean filling.
- CIP Cleaning Hopper: Allows online cleaning without disassembly, convenient and fast.
- No Bottle, No Fill: Intelligent detection, automatically stops filling when no bottle is present to avoid waste.
- Linear Structure: Flexibly adapts to various bottle sizes, no need to change parts when switching specifications.
- PLC + Touch Screen: Intuitive operation, adjustable parameters, supports multi-stage filling settings.
- Quick Disassembly: Connectors designed for quick installation, easy to disassemble, clean, and maintain.
- Optional Supporting Equipment: Can be combined with conveyors, cappers, labellers to form a complete packaging line.
Applicable Oils and Packaging Specifications
Applicable Oils:
Coconut oil, olive oil, sunflower oil, soybean oil, mustard oil, rapeseed oil, peanut oil, palm oil, sesame oil, and other common vegetable oils.
Filling Volumes:
100ml · 200ml · 250ml · 500ml · 750ml · 900ml · 1L · 1.5L · 1.8L · 2.5L · 4L · 5L · 8L · 10L · 20L, etc.
Packaging Containers:
PET plastic bottles, glass bottles, tin cans (metal cans), etc.
Detailed Explanation of Filling Machine Types
Linear Filling Machine
Uses intermittent linear motion, with bottles passing through filling stations sequentially. Flexible structure, easy to integrate into existing production lines, suitable for small to medium-sized factories with limited space or budget constraints.
Rotary Filling Machine
Continuously processes bottles through a rotating turntable, offering high filling speed and efficiency, ideal for large-scale continuous production. Additional stations for capping, labeling, etc., can be integrated into the rotary system for high-speed automated packaging.
Semi-Automatic Filling Machine
Requires some manual intervention (such as placing and removing bottles), but filling doses are precisely controlled by the machine. Low investment cost, suitable for medium-output or frequently changing product specifications.
Automatic Filling Machine
Fully automated from bottle feeding, filling, capping to discharging, equipped with sensors and control systems. Suitable for high-volume production, significantly saving labor and ensuring filling consistency.
Optional Configurations and Customization Services
- 316 stainless steel contact parts (suitable for highly corrosive or special requirement products)
- Blow-fill device (for handling high-viscosity oils)
- CIP cleaning system
- Different numbers of filling heads (customized according to output)
- Synchronization control with upstream and downstream equipment
Why Choose Us
- Specializing in edible oil processing equipment for many years, providing complete solutions from oil pressing, refining, filling to packaging.
- Equipment designed according to vegetable oil characteristics, ensuring filling quality and extending edible oil shelf life.
- Provide on-site layout planning and customized design to ensure perfect integration of equipment with the production line.
- Comprehensive after-sales service, quick response to customer needs.
