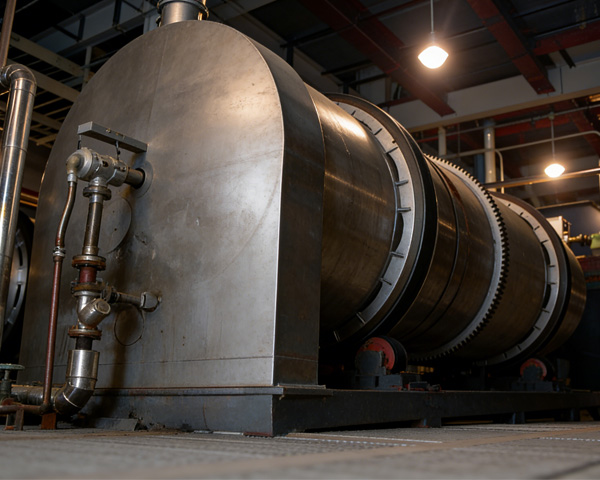

The Oilseed Drum Softening Machine (also known as a drum softening cooker) is an indispensable core piece of equipment in modern oil plants, particularly in the pretreatment section of facilities using solvent extraction technology. By precisely controlling the temperature and moisture of oilseeds, it effectively improves the physical characteristics of the material, creating optimal conditions for subsequent flaking, prepressing, and solvent extraction processes, thereby significantly enhancing the final oil yield and quality. The single-unit processing capacity ranges from 50 to 1500 tons per day, meeting the needs of various production scales.
Why is Oilseed “Conditioning” Necessary?
Oilseed conditioning is a critical pretreatment step before oil extraction. Its fundamental purpose is to adjust the moisture and temperature of the oilseed, making it soft and malleable (i.e., providing elasticity and plasticity). This is crucial for the subsequent flaking process:
- For low-oil, low-moisture oilseeds like soybeans:These oilseeds are inherently hard. Direct flaking tends to generate excessive fines (powder), which hinders subsequent pressing and solvent penetration, ultimately reducing the oil yield. Conditioned soybeans can be flaked into thinner, more compact, and less fragile flakes.
- For high-oil or high-hull oilseeds (e.g., rapeseed):Conditioning adjusts their mechanical properties, allowing them to be flattened effectively during flaking while preventing issues like sticking to the rolls or generating excessive fines due to being too soft.
In short, conditioning ensures that oilseeds enter the flaking mill in an optimal physical state, forming the foundation for improving the overall line’s oil yield and final product quality.
Working Principle
The main body of the equipment is a slowly rotating horizontal drum. Oilseeds enter from the feed end and are uniformly lifted and showered inside the drum as it rotates. During this process, the oilseeds come into full contact with the drum wall and internal heating elements (such as a squirrel cage heating structure), achieving uniform heating through conduction and radiation. Simultaneously, through the tumbling action, the oilseeds undergo moisture and heat exchange and equilibration, eventually reaching the desired conditioned state. The drum’s rotation speed and processing time can be flexibly adjusted based on the oilseed type and initial moisture content to ensure optimal conditioning results.
Advantages & Features
1. Revolutionary Energy-Saving Design: Significantly Reduce Operating Costs
Compared to traditional vertical conditioners, this equipment utilizes a unique drum structure and efficient heat transfer method, requiring only one-tenth of the power. This means substantial savings on electricity costs for the same processing capacity, achieving genuine cost reduction and efficiency improvement.
2. Uniform Conditioning, Zero Dead-Zone Process: Enhance Product Quality
The continuous rotation of the drum ensures every single oilseed receives uniform mixing and heating, completely eliminating potential processing dead zones found in traditional equipment. This effectively prevents localized overheating and overcooking, ensuring consistent quality across every batch of raw material and providing high-quality flakes for downstream processes.
3. Innovative Drive and Heating Structure: Durable, Nearly Maintenance-Free
We employ a robust gear transmission system and an innovative squirrel cage heating structure, completely discarding the wear-prone scraping blades and heated chassis found in conventional equipment. This design fundamentally solves problems related to blade damage and chassis wear, greatly extending the equipment’s service life and minimizing failure rates and maintenance costs.
4. High Process Flexibility: Adapts to Various Oilseeds
The equipment allows for easy adjustment of the material’s residence time based on the type of oilseed, its moisture content, and final process requirements. Whether it’s soybeans requiring short heating times or specialty oilseeds needing longer conditioning, this equipment handles it with ease.
5. Unique Anti-Clogging and Leak-Proof Design: Stable Operation, Strong Adaptability
The optimized design of the inlet/outlet and drum structure effectively prevents clogging and leakage risks inside the equipment when processing high-moisture or sticky oilseeds. Particularly for high-moisture materials requiring simultaneous conditioning and drying, this equipment excels due to its unique structural design.
Scope of Application & Typical Uses
Applicable Oilseeds:
- Low-oil, low-moisture oilseeds: Such as soybeans. These materials have poor plasticity and hard texture, making conditioning a necessary step.
- High-oil, high-hull/fiber oilseeds: Such as rapeseed, flaxseed, sunflower seeds, etc.
- Typical Process Stage: Primarily used in the pretreatment section of solvent extraction or prepressing oil production processes, located after the oilseed decorticator (if needed) and before the flaking mill.
