Palm oil extraction machines extract crude palm oil (CPO) from fresh palm fruits through mechanical pressing. They are one of the most critical core pieces of equipment in palm oil mills or palm oil pressing plants. KMEC provides complete palm oil extraction solutions for facilities ranging from small palm oil mills to large industrial palm oil processing plants. Our palm oil presses are widely used in Nigeria, Ghana, Cameroon, Ivory Coast, Malaysia, Indonesia, and other major palm oil producing regions. This small palm oil extractor is highly popular due to its compact design, ease of operation, and low maintenance costs, making it an ideal choice for start-ups and local palm oil producers.
Technical Parameters of Palm Oil Extraction Machine
| Item | Specification |
|---|---|
| Capacity | 300–500 kg/h |

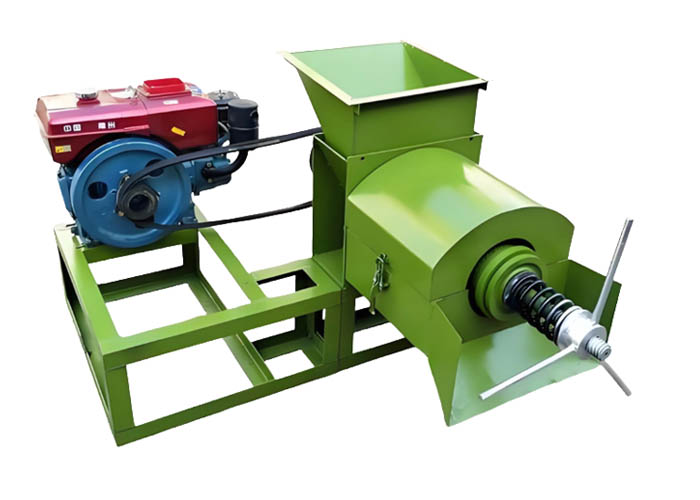

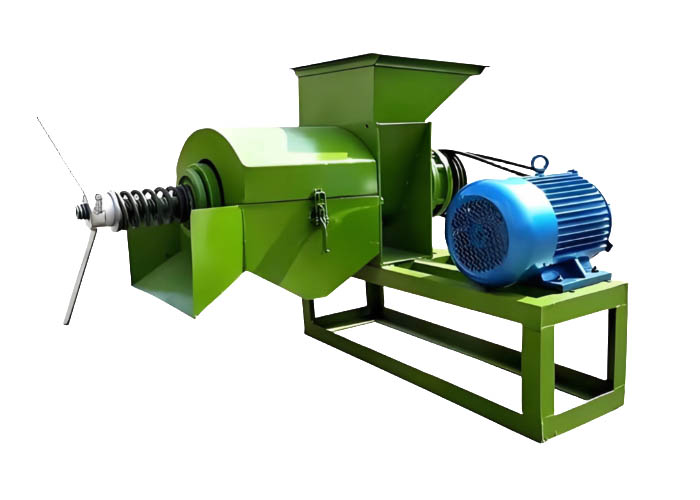

| Main Power | Diesel: 8 HP / Motor: 4 kW |
| Weight | 350 kg |
| Packing Size | 1500 × 800 × 1200 mm |
This machine is suitable for small palm oil press lines with stable output and high oil yield.
Equipment Required for a Small Palm Oil Mill (1–10 Tons/Day)
A complete small palm oil processing plant typically includes the following equipment: belt conveyor, fresh fruit bunch (FFB) thresher, screw conveyor, palm oil screw press, crude oil clarifier, palm oil filter and purification system, storage tanks, and oil transfer pumps.
For smaller-scale investment projects, the most basic equipment consists of a palm oil extraction machine and oil filtration unit. Equipment selection depends on your business scale, budget, and production goals.
Palm Oil Processing Flow in a Palm Oil Mill
An efficient palm oil mill follows a systematic palm fruit processing sequence to ensure high-quality crude palm oil (CPO) output:
1. Fruit Reception & Weighing
Fresh fruit bunches are unloaded carefully to avoid damage, which can raise free fatty acids (FFA) and reduce oil quality. Weighing helps track procurement costs and processing efficiency.
2. Sterilization & Threshing
Sterilization using a palm fruit autoclave loosens the fruitlets from bunches, prevents enzyme activity, and prepares the fruit for extraction. A palm fruit threshing machine then separates fruitlets from the bunch stalk.

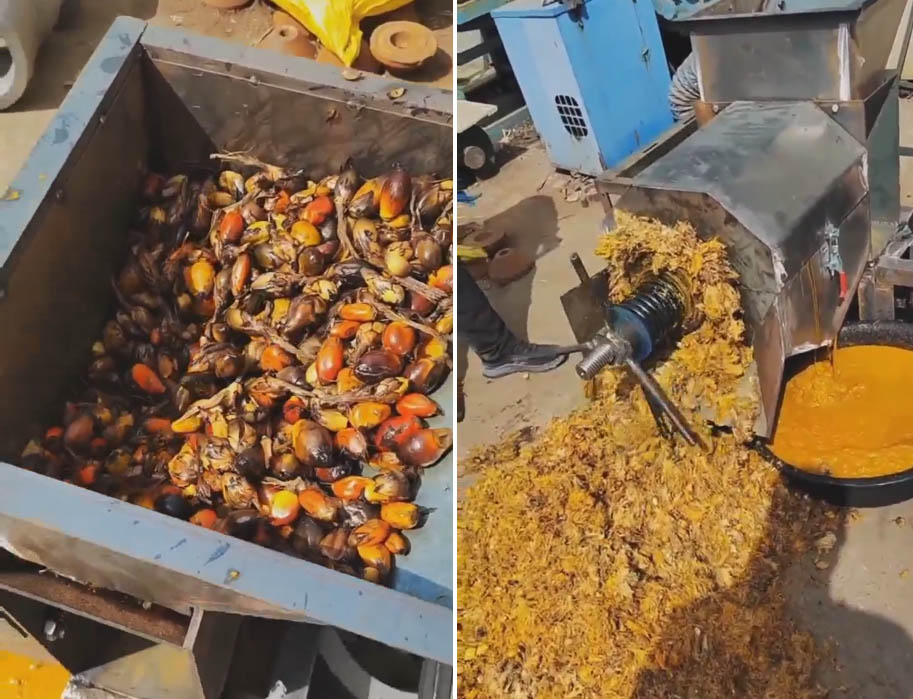

3. Digestion & Pressing
The digested fruit is fed into a screw palm oil press—the core of the palm oil extraction process. This machine efficiently extracts oil from the pulp under controlled pressure.
4. Clarification & Purification
Extracted oil passes through filters and clarifiers to remove solids, moisture, and impurities. Purified red palm oil is then stored or packaged for market.
5. Waste Management & By-product Recovery
Modern palm oil mills also focus on sustainability—converting empty fruit bunches (EFB), palm kernels, and fiber into biofuel, organic fertilizer, or kernel oil through integrated palm oil processing technology.
Features of KMEC Palm Oil Extraction Machine
Small palm oil presses are widely used worldwide because they are affordable, efficient, and suitable for rural palm oil businesses.
Key advantages include:
- Saves production time and labor cost
- High oil extraction rate with low residual oil cake
- Easy to operate, repair, and maintain
- Compact structure for small-scale palm oil mills
- Ensures high-quality crude palm oil production
KMEC can supply complete sets of palm oil extraction machines for:
- Small palm oil press workshops
- Medium palm oil processing plants
- Large industrial palm oil mill projects
If you plan to build your own palm oil mill or start a palm oil production business, contact us today. We provide professional guidance, equipment selection, installation support, and after-sales service.
