YZS-100 Oil Expeller Press
The YZS-100 oil expeller press is a high-performance oil processing equipment specifically designed for small to medium-sized oil pressing workshops, individual operators, and rural oil mills. The complete machine consists of core components including a hopper, pressing cage, screw shaft, and main frame. It features an upgraded feeding mechanism that ensures materials enter the pressing chamber smoothly and quietly, significantly reducing the risk of clogging and making it suitable for long-term continuous operation. By efficiently extracting oil through mechanical pressure, this oil expeller press is suitable for various oilseed crops including rapeseed, cottonseed, peanuts, soybeans, sesame, sunflower seeds, flaxseed, jatropha seeds, corn germ, and more, making it a versatile player in vegetable oil processing machinery.
Features and Advantages of YZS-100 Oil Expeller Press:
- Upgraded Feeding System – Smoother material flow, low operating noise, reduced clogging, and improved pressing efficiency.
- Wide Applicability of Oilseeds – Can press granular and some powdery oilseeds including rapeseed, cottonseed, sesame, peanuts, soybeans, sunflower, jatropha, flaxseed, corn germ, black seed, black kernel, and more.
- Easy Operation and Maintenance – Smooth exterior for easy cleaning, modular design saves time and effort in daily maintenance.
- Reliable and Durable Performance – Key components made of high-strength wear-resistant materials, suitable for long-term high-load use in small to medium-sized oil mills.
- Flexible Power Options – Can use mains electricity directly or combine with diesel engine + generator to meet operational needs in areas without electricity or with power shortages.
- Quality Certification Guarantee – Complies with China JB/T 9793.1-1999 standard, certified by CE and ISO9000, ensuring reliable quality.
Working Principle of YZS-100 Oil Expeller Press:
Materials are fed uniformly from the hopper and pushed by the screw shaft into the pressing chamber. The screw shaft features different rotation speeds and segmented threads, subjecting the materials to progressively increasing mechanical pressure within the pressing chamber. Oil is squeezed out and flows through the gaps between the pressing screw and pressing rings, while residue is discharged from the other end. The entire process is continuous and automatic without manual intervention, ensuring high and stable oil yield.

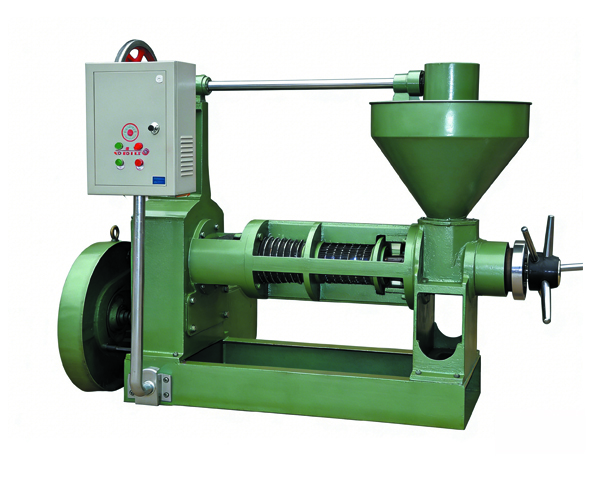

Main Structure of YZS-100 Oil Expeller Press:
- Hopper – Large capacity design ensures continuous feeding.
- Pressing Cage – Built-in heating device (optional) allows adjustment of pressing temperature to improve oil yield.
- Screw Shaft – Segmented thread design achieves progressive pressing, adapting to different oilseed characteristics.
- Main Frame – Welded with high-strength steel, ensuring stable operation of the entire machine.
- Control Cabinet (standard for electric models) – Integrates temperature control, motor start/stop, and other functions with intuitive operation.
Optional Configuration – Diesel Engine Solution:
For locations with inconvenient power supply or mobile processing needs, the YZS-100 can be combined with a diesel engine + generator + thermostat to form an independent oil pressing unit:
– Diesel engine drives the generator to produce electricity
– Electricity powers the oil press control cabinet and heating tubes
– Achieves completely off-grid operation, flexibly adapting to remote areas or field operations
After-Sales Service:
We promise to provide all YZS-100 oil expeller press users with long-term spare parts supply and technical support, ensuring the equipment operates efficiently throughout its lifespan. Wherever you are located, we can provide timely service responses, allowing you to operate without worries.
